TRAPEZOID MECHANICAL SEAM
Rolled on site. Built for commercial strength. A 3" double-lock standing seam for commercial, industrial, and pre-engineered buildings, run to length right at your jobsite.
Rolled On Site. Built For Commercial Strength.
Our Trapezoid Mechanically Seamed Panel is built for commercial and industrial work, and we roll it right at your jobsite. It's a 3" tall structural panel and one of the most trusted profiles in the industry, for good reason: watertight seams, strength under load, and long runs without a splice.
The double-lock seam gets mechanically rolled shut after install, so water has nowhere to go. That makes it a go-to for low-slope and complex commercial roofs, pre-engineered steel buildings, and reroofs where the old system has given out.
We don't just sell panels. We help you build faster. Our mobile roll former can travel anywhere in the U.S. and run panels cut to length at eave height. No shipping delays, no damaged long panels, no piecing runs together.
Why Contractors Pick Trapezoid
Everything you need to bid it, run it, and close it out.
Structural Performance
Engineered for long spans, high loads, and serious durability on commercial, industrial, and pre-engineered metal buildings.
Watertight Protection
The 3" double-lock standing seam resists water infiltration, which is why it's a go-to on low-slope and complex roofs.
On-Site Roll Forming
Our mobile roll former travels anywhere in the U.S. Panels run cut to length at eave height, right on your jobsite.

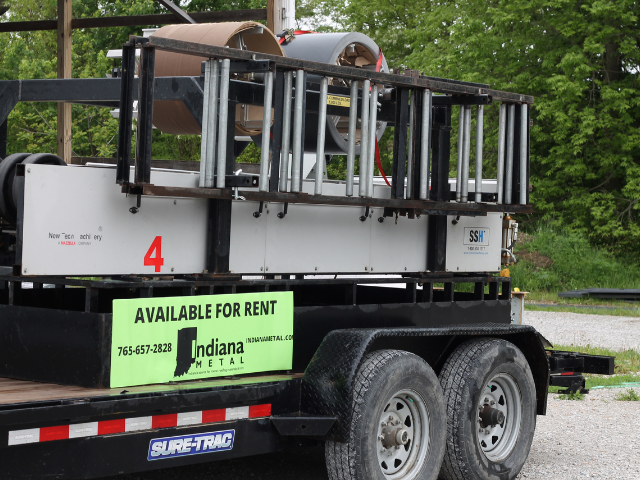

Rental Option
Already have a crew? Rent our machine and run your own panels. We'll train you and supply the panels, clips, closures, and support.
Complete System In Stock
Clips, closures, and accessories are stocked and ready to ship when you are. One call covers the whole roof.
Win More Bids
Cut lead times and material waste with real-time panel production. Faster schedules make for sharper bids.
Gain Efficiencies. Get The Edge.
Your projects don't have time for hold-ups. That's why we help contractors cut lead times, reduce material waste, and win more bids with panels produced right on the job.
Let our team help you spec your next job with the Trapezoid Panel system, from clip selection to closures to the roll former schedule.
Profile, Colors & System
What you need to spec the job. Call us for anything not covered here.
Panel Profile
- Rib Height3"
- SeamDouble-lock, mech. seamed
- ProductionRolled on site
Colors
Galvalume is the standard color. Painted colors are available as an upcharge. Contact sales for color options and pricing on your job.
Screens lie about color. Order a free sample and see it in daylight before you commit.
Complete System
We stock the full Trapezoid system: clips, closures, and accessories. Order the panels and everything that goes with them from one place.
Need custom trim or flashing? We bend it in-house.
Contact Us For Pricing
Trapezoid jobs are quoted project by project. Call either location, or send us the basics and our sales team will get back to you with pricing and color options.
More Commercial Options
MP210
A 2" mechanically seamed panel rated down to 1/4:12, with color options for commercial roofs.
See MP210 →Roll Former Rentals
Run panels on your own schedule with our machine, training, and support.
See Rentals →Trapezoid In The Field
Trapezoid Panel FAQ
How is the Trapezoid panel priced?
Every job is quoted individually. Call Bainbridge at 765-657-2828 or Indianapolis at 317-907-7777, or send us your project details above.
What colors are available?
Galvalume is the standard color. Painted colors are available as an upcharge. Contact sales for options.
Can you roll panels on my jobsite?
Yes. Our mobile roll former can travel anywhere in the U.S. and run panels cut to length at eave height, right on your job.
Can my crew rent the roll former?
Yes. Rent our machine and run your own panels. We'll train your crew and supply the panels, clips, closures, and support.
What is a double-lock mechanical seam?
After install, the 3" seams are rolled shut with a seaming tool, folding the panel edges together twice. That creates a tight, watertight joint that holds up on low-slope and complex roofs.
Do you stock the clips and closures?
Yes. We stock the complete system: clips, closures, and accessories, ready to ship.
What kinds of buildings is it for?
Commercial reroofs, pre-engineered steel buildings, industrial warehouses, municipal and government buildings, and restoration and insurance jobs.
Got A Trapezoid Job Coming Up?
Call Bainbridge at 765-657-2828 or Indianapolis at 317-907-7777, or send us your project details.
